地图数据的配置以及图的建立[toc]

首先去找一张学校的地图，并且自己配置好数据和路线** 在代码里面写好数据

1
2
3
4
5
6
 //地点信息
char _mapName[32][50] = {"行政楼","实验楼D", "教学楼A",  "篮球场", "足球场", "A4", "实验楼C", "教学楼B", "A2", "A6", "计算机系", "苏果超市",
                         "果曼优品", "实验楼A", "教学楼C", "图书馆", "一食堂", "D2", "D8", "C4", "中国联通", "羽毛球场", "网球场",
                         "B5", "B7", "D4", "D6", "C8", "C6", "三食堂", "一鸣真鲜奶吧","B11"};
//距离信息,_distance[0][1] = 50;代表从下标为0到下表为1地点距离为50
int _distance[32][32] = {0};

然后是图的结构，仅仅与不带权邻接表在边表结点相差一个weight

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
 //边表结点
typedef struct EdgeNode {
    //顶点对应的下标
    int adjvex;
    //权值
    int weight;
    //指向下一个邻接点
    struct EdgeNode *next;
} edgeNode;

//顶点表结点
typedef struct VertexNode {
    //顶点数据
    char data[50];
    //边表头指针
    edgeNode *firstedge;
} VertexNode, AdjList[100];

//集合
typedef struct {
    AdjList adjList;
    //顶点数和边数
    int numVertexes, numEdges;
} GraphAdjList;

初始化地图距离信息

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
 //初始化地图基本数据
void AdjacencyList::InitMap(GraphAdjList *G) {
    //输入顶点数和边数
    G->numVertexes = 32;
    G->numEdges = 59;
    _distance[0][2] = 60;

    _distance[1][2] = 190;
    _distance[1][7] = 210;
    _distance[1][6] = 70;

    _distance[2][7] = 80;
    _distance[2][16] = 320;
    _distance[2][3] = 120;

    _distance[3][7] = 100;
    _distance[3][14] = 170;
    _distance[3][4] = 80;

    _distance[4][11] = 180;
    _distance[4][8] = 90;
    _distance[4][5] = 140;

    _distance[5][9] = 70;

    _distance[6][7] = 220;
    _distance[6][10] = 50;

    _distance[7][10] = 210;
    _distance[7][14] = 90;
    _distance[7][16] = 260;

    _distance[8][11] = 110;
    _distance[8][9] = 60;

    _distance[9][11] = 110;

    _distance[10][17] = 190;
    _distance[10][13] = 50;

    _distance[11][16] = 80;
    _distance[11][12] = 90;

    _distance[12][16] = 100;

    _distance[13][17] = 160;
    _distance[13][18] = 170;
    _distance[13][15] = 120;
    _distance[13][14] = 190;

    _distance[14][15] = 80;
    _distance[14][16] = 210;

    _distance[15][18] = 140;
    _distance[15][20] = 200;
    _distance[15][21] = 170;

    _distance[16][21] = 200;
    _distance[16][23] = 80;

    _distance[17][25] = 60;
    _distance[17][18] = 70;

    _distance[18][26] = 70;
    _distance[18][19] = 120;

    _distance[19][20] = 60;

    _distance[20][21] = 100;
    _distance[20][22] = 110;
    _distance[20][27] = 130;
    _distance[20][28] = 120;

    _distance[21][22] = 90;

    _distance[22][29] = 120;
    _distance[22][30] = 110;
    _distance[22][24] = 110;

    _distance[23][24] = 80;

    _distance[24][30] = 40;

    _distance[25][26] = 80;

    _distance[26][27] = 80;

    _distance[28][29] = 80;

    _distance[29][31] = 180;
    _distance[29][30] = 100;

    _distance[30][31] = 100;
}

开始创建地图 ，注意，由于我们只赋值了一条边一次值，但从常理上说，他应该有2次，因为无向邻接表就是双向邻接表，所以我们创建地图算法要多做一下判定。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
 //创建地图
void AdjacencyList::CreateALGraph(GraphAdjList *G) {
    edgeNode *e;
    //读入顶点信息，建立顶点表
    for (int i = 0; i < G->numVertexes; i++)
    {
        //读入顶点信息
        strcpy(G->adjList[i].data, _mapName[i]);
        //将边表置为空表
        G->adjList[i].firstedge = NULL;
    }
    //建立边表（头插法）
    for (int i = 0; i < G->numVertexes; i++)
    {
        for (int j = 0; j < i; j++)
        {
            int temp;
            if (_distance[i][j] != 0  _distance[j][i] != 0)
            {
                if (_distance[i][j] != 0)
                {
                    temp = _distance[i][j];
                }
                else
                {
                    temp = _distance[j][i];
                }
                e = new EdgeNode;
                e->adjvex = j;
                e->next = G->adjList[i].firstedge;
                e->weight = temp;
                G->adjList[i].firstedge = e;

                e = new EdgeNode;

                e->adjvex = i;
                e->next = G->adjList[j].firstedge;
                e->weight = temp;
                G->adjList[j].firstedge = e;
            }

        }
    }

}

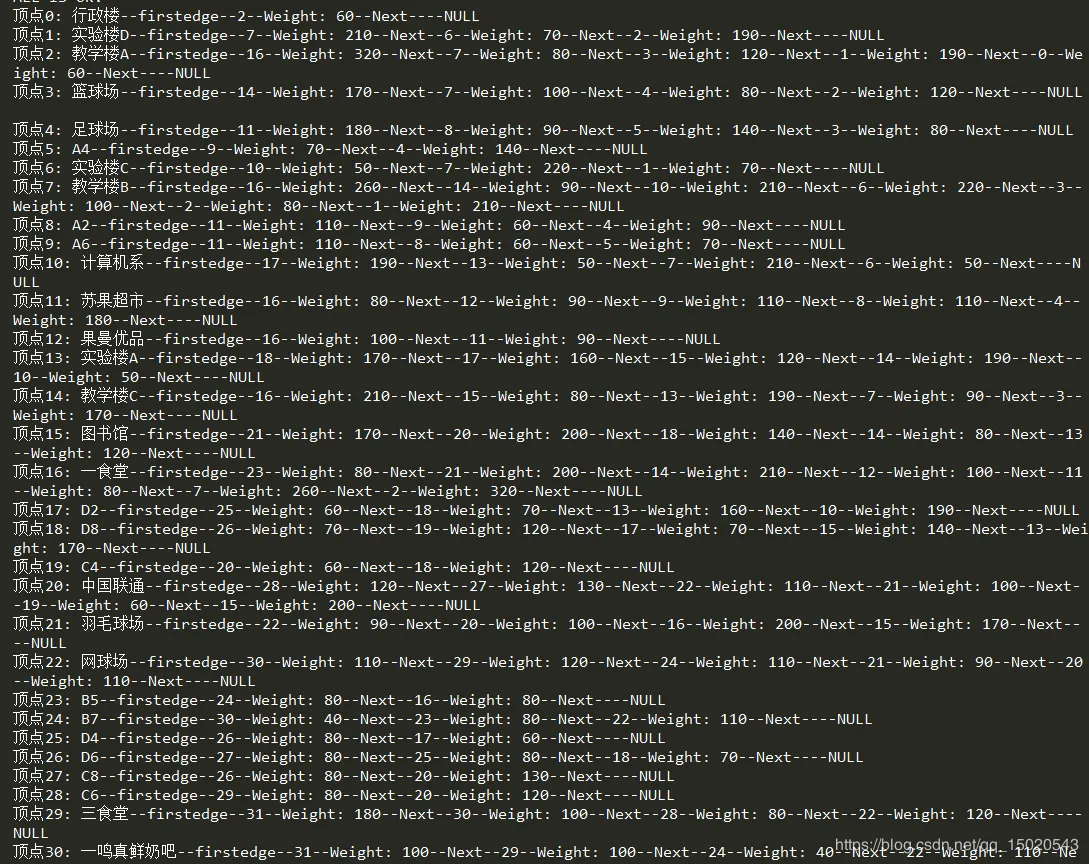

运行程序检验是否成功

弗洛伊德算法理解与应用

求最短路径最常用的有迪杰斯特拉（Dijkstra）和弗洛伊德（Floyd）算法两种。本着简洁为王道的信条，我选择了Floyd算法。 Floyd算法 首先来看一个简单图，红色标记代表在数组的下标，橙色标记代表距离（边权值） https://myfirstblog.oss-cn-hangzhou.aliyuncs.com/2019/04/QQ截图20190430204923.png!webp 我们用D[6][6]这个矩阵存储两点之间最短路径，用P[6][6]这个矩阵存储路径 两个矩阵初始化如下，若两点不直接联通，则初始化为无穷大 D[6][6]   A B C D E F A 0 7 ∞ ∞ 10 5 B 7 0 8 ∞ ∞ ∞ C ∞ 8 0 6 ∞ 5 D ∞ ∞ 6 0 7 ∞ E 10 ∞ ∞ 7 0 4 F 5 ∞ 5 ∞ 4 0 P[6][6]   A B C D E F A 0 1 2 3 4 5 B 0 1 2 3 4 5 C 0 1 2 3 4 5 D 0 1 2 3 4 5 E 0 1 2 3 4 5 F 0 1 2 3 4 5 核心代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
for (int k = 0; k < G->numVertexes; ++k)
{
    for (int v = 0; v < G->numVertexes; ++v)
    {
        for (int w = 0; w < G->numVertexes; ++w)
        {
            if (D[v][w] > D[v][k] + D[k][w])
            {
                D[v][w] = D[v][k] + D[k][w];
                P[v][w] = P[v][k];
            }
        }
    }
}

其中k为中转顶点下标，级无论走哪条路径，都要经过k下标的顶点，v代表起始顶点，w代表终点。  当取k=0时代表所有路径都经过下标为0的地点（A） v取2，w取3，即从C到D，有C-A-D，可惜这个路径的和不小于C-D的路径大小，所以D数组不会有变化。 v取1，w取4，即从B到E，有B-A-E，发现它的值为17，小于B-E的无穷大，所以D[1][4]由无穷大改为17，因为D数组变化了，所以P数组也要跟着变化，把P[1][4]改为当前P[1][0]，代表从B到E下一节点为A 同理在k取0时，将这个时间复杂度为O(6^2)的循环走完，那么D和P矩阵如下 D[6][6]   A B C D E F A 0 7 ∞ ∞ 10 5 B 7 0 8 ∞ 17 12 C ∞ 8 0 6 ∞ 5 D ∞ ∞ 6 0 7 ∞ E 10 17 ∞ 7 0 4 F 5 12 5 ∞ 4 0 P[6][6]   A B C D E F A 0 1 2 3 4 5 B 0 1 2 3 0 0 C 0 1 2 3 4 5 D 0 1 2 3 4 5 E 0 0 2 3 4 5 F 0 0 2 3 4 5 然后取k=1,2,3,4,5遍历完成后，D和P就是我们的目标数组了。 输出结果 这个就比较简单了，比如我输入1,4，代表我想知道从B走到E的最短路径，先输出最短路径为D[1][4]。然后就是具体的路径，我们找到P[1][4]，发现它等于0，意味着从B走到E要先走B-A，然后我们看P[0][4]，发现它等于4，也就是E，到达终点。

1
2
3
4
5
6
7
8
9
10
11
void AdjacencyList::ShowShortestResult(int originPos,int endPos) {
    int temp;
    cout << "地点" << _mapName[originPos] << "到地点" << _mapName[endPos] << "最短距离为" << ShortestPathvalue[originPos][endPos] << endl;
    temp = ShortestPathmatrix[originPos][endPos];
    cout<<"具体路径为："<<_mapName[originPos]<<"——>";
    while (temp!=endPos){
        cout<<_mapName[temp]<<"——>";
        temp = ShortestPathmatrix[temp][endPos];
    }
    cout<<_mapName[endPos]<<endl;
}

地图图像显示以及完整程序

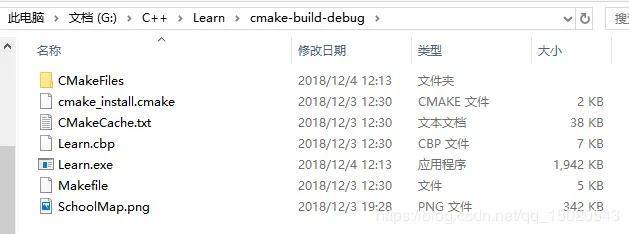

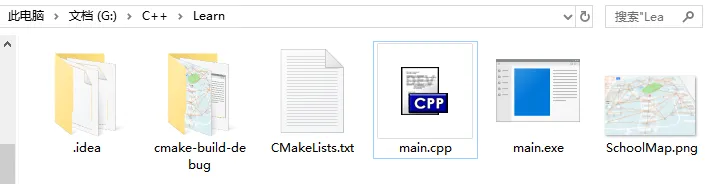

首先是地图的显示，因为控制台限制，只能通过外部程序来显示图片** 如果你使用的是VC6.0或者Dev C++将准备好的图片放在工程根目录，命名为SchoolMap.png!webp 如果有小伙伴和我一样使用的是CLion的话，就把图片放到cmake-build-debug下面 在main函数里调用以下语句即可显示图片

1
system("mspaint SchoolMap.png!webp");

可是问题来了，如果调用这一个语句，程序会暂停，不把图片关闭程序就不会继续运行，还好控制台会缓存我们的输入。也就有了挽救的可能。

1
2
3
4
5
6
7
8
 while(1){
    cout<<"请按照图片选择你想去的地方，输入起始点和目的地的序号，以空格间隔。"<<endl;
    cout<<"标准格式 ：0 1回车"<<endl;
    cout<<"若输入已完成，请按回车键，并关闭图片。即可显示路径。"<<endl;
    system("mspaint SchoolMap.png!webp");
    cin>>originPos>>endPos;
    adjacencyList.ShowShortestResult(originPos,endPos);
}

真的有点麻烦，我哭了，你们呢。 Gif版

完整程序

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
 #include <iostream>
#include <string.h>
#include <stdlib.h>

using namespace std;
//存储最短路径值
int ShortestPathvalue[32][32] = {0};
//存储具体路径
int ShortestPathmatrix[32][32] = {0};
//地点信息
char _mapName[32][50] = {"行政楼", "实验楼D", "教学楼A", "篮球场", "足球场", "A4", "实验楼C", "教学楼B", "A2", "A6", "计算机系", "苏果超市",
                         "果曼优品", "实验楼A", "教学楼C", "图书馆", "一食堂", "D2", "D8", "C4", "中国联通", "羽毛球场", "网球场",
                         "B5", "B7", "D4", "D6", "C8", "C6", "三食堂", "一鸣真鲜奶吧", "B11"};
//距离信息,_distance[0][1] = 50;代表从下标为0到下表为1地点距离为50
int _distance[32][32] = {0};
//边表结点
typedef struct EdgeNode {
    //顶点对应的下标
    int adjvex;
    //权值
    int weight;
    //指向下一个邻接点
    struct EdgeNode *next;
} edgeNode;

//顶点表结点
typedef struct VertexNode {
    //顶点数据
    char data[50];
    //边表头指针
    edgeNode *firstedge;
} VertexNode, AdjList[100];

//集合
typedef struct {
    AdjList adjList;
    //顶点数和边数
    int numVertexes, numEdges;
} GraphAdjList;

class AdjacencyList {
public:


    void ShowALGraph(GraphAdjList *G);

    void Test();

    //初始化地图
    void InitMap(GraphAdjList *G);

    //创建地图
    void CreateALGraph(GraphAdjList *G);

    //计算各个顶点之间最短路径
    void ShortestPath_Floyd(GraphAdjList *G, int P[32][32], int D[32][32]);

    //输出路径长度和具体路径
    void ShowShortestResult(int originPos,int endPos);
};

//创建地图
void AdjacencyList::CreateALGraph(GraphAdjList *G) {
    edgeNode *e;
    //读入顶点信息，建立顶点表
    for (int i = 0; i < G->numVertexes; i++)
    {
        //读入顶点信息
        strcpy(G->adjList[i].data, _mapName[i]);
        //将边表置为空表
        G->adjList[i].firstedge = NULL;
    }
    //建立边表（头插法）
    for (int i = 0; i < G->numVertexes; i++)
    {
        for (int j = 0; j < i; j++)
        {
            int temp;
            if (_distance[i][j] != 0  _distance[j][i] != 0)
            {
                if (_distance[i][j] != 0)
                {
                    temp = _distance[i][j];
                    _distance[j][i] = _distance[i][j];
                }
                else
                {
                    temp = _distance[j][i];
                    _distance[i][j] = _distance[j][i];
                }
                e = new EdgeNode;
                e->adjvex = j;
                e->next = G->adjList[i].firstedge;
                e->weight = temp;
                G->adjList[i].firstedge = e;

                e = new EdgeNode;

                e->adjvex = i;
                e->next = G->adjList[j].firstedge;
                e->weight = temp;
                G->adjList[j].firstedge = e;
            }

        }
    }

}

void AdjacencyList::Test() {
    cout << "ALL IS OK." << endl;
}

void AdjacencyList::ShowALGraph(GraphAdjList *G) {
    for (int i = 0; i < G->numVertexes; i++)
    {
        cout << "顶点" << i << ": " << G->adjList[i].data << "--firstedge--";
        edgeNode *p = new edgeNode;
        p = G->adjList[i].firstedge;
        while (p)
        {
            cout << p->adjvex << "--Weight: " << p->weight << "--Next--";
            p = p->next;
        }
        cout << "--NULL" << endl;
    }

}

//初始化地图基本数据
void AdjacencyList::InitMap(GraphAdjList *G) {
    //输入顶点数和边数
    G->numVertexes = 32;
    G->numEdges = 59;
    _distance[0][2] = 60;

    _distance[1][2] = 190;
    _distance[1][7] = 210;
    _distance[1][6] = 70;

    _distance[2][7] = 80;
    _distance[2][16] = 320;
    _distance[2][3] = 120;

    _distance[3][7] = 100;
    _distance[3][14] = 170;
    _distance[3][4] = 80;

    _distance[4][11] = 180;
    _distance[4][8] = 90;
    _distance[4][5] = 140;

    _distance[5][9] = 70;

    _distance[6][7] = 220;
    _distance[6][10] = 50;

    _distance[7][10] = 210;
    _distance[7][14] = 90;
    _distance[7][16] = 260;

    _distance[8][11] = 110;
    _distance[8][9] = 60;

    _distance[9][11] = 110;

    _distance[10][17] = 190;
    _distance[10][13] = 50;

    _distance[11][16] = 80;
    _distance[11][12] = 90;

    _distance[12][16] = 100;

    _distance[13][17] = 160;
    _distance[13][18] = 170;
    _distance[13][15] = 120;
    _distance[13][14] = 190;

    _distance[14][15] = 80;
    _distance[14][16] = 210;

    _distance[15][18] = 140;
    _distance[15][20] = 200;
    _distance[15][21] = 170;

    _distance[16][21] = 200;
    _distance[16][23] = 80;

    _distance[17][25] = 60;
    _distance[17][18] = 70;

    _distance[18][26] = 70;
    _distance[18][19] = 120;

    _distance[19][20] = 60;

    _distance[20][21] = 100;
    _distance[20][22] = 110;
    _distance[20][27] = 130;
    _distance[20][28] = 120;

    _distance[21][22] = 90;

    _distance[22][29] = 120;
    _distance[22][30] = 110;
    _distance[22][24] = 110;

    _distance[23][24] = 80;

    _distance[24][30] = 40;

    _distance[25][26] = 80;

    _distance[26][27] = 80;

    _distance[28][29] = 80;

    _distance[29][31] = 180;
    _distance[29][30] = 100;

    _distance[30][31] = 100;
}

void AdjacencyList::ShortestPath_Floyd(GraphAdjList *G, int P[32][32], int D[32][32]) {
    //初始化D与P
    for (int v = 0; v < G->numVertexes; ++v)
    {
        for (int w = 0; w < G->numVertexes; ++w)
        {
            if(_distance[v][w]==0&&v!=w){
                _distance[v][w] = 10000;
            }
            D[v][w] = _distance[v][w];
            P[v][w] = w;
        }
    }
    for (int k = 0; k < G->numVertexes; ++k)
    {
        for (int v = 0; v < G->numVertexes; ++v)
        {
            for (int w = 0; w < G->numVertexes; ++w)
            {
                if (D[v][w] > D[v][k] + D[k][w])
                {
                    D[v][w] = D[v][k] + D[k][w];
                    P[v][w] = P[v][k];
                }
            }
        }
    }

}

void AdjacencyList::ShowShortestResult(int originPos,int endPos) {
    int temp;
    cout << "地点" << _mapName[originPos] << "到地点" << _mapName[endPos] << "最短距离为" << ShortestPathvalue[originPos][endPos] << endl;
    temp = ShortestPathmatrix[originPos][endPos];
    cout<<"具体路径为："<<_mapName[originPos]<<"——>";
    while (temp!=endPos){
        cout<<_mapName[temp]<<"——>";
        temp = ShortestPathmatrix[temp][endPos];
    }
    cout<<_mapName[endPos]<<endl;
}


int main() {
    AdjacencyList adjacencyList;
    int originPos,endPos;
    GraphAdjList *GA = new GraphAdjList;
    adjacencyList.Test();
    adjacencyList.InitMap(GA);
    adjacencyList.CreateALGraph(GA);
    adjacencyList.ShortestPath_Floyd(GA,ShortestPathmatrix,ShortestPathvalue);
    cout<<"地图所有数据已经初始化完成,地图图像已显示"<<endl;
    while(1){
        cout<<"请按照图片选择你想去的地方，输入起始点和目的地的序号，以空格间隔。"<<endl;
        cout<<"标准格式 ：0 1关闭图片，回车"<<endl;
        cout<<"若输入已完成，请关闭图片。再按下回车键，即可显示路径。"<<endl;
        system("mspaint SchoolMap.png!webp");
        cin>>originPos>>endPos;
        adjacencyList.ShowShortestResult(originPos,endPos);
    }

    return 0;
}
